example camera models

This page contains example diagrams for different camera models that have acquired historical aerial photos, including what their fiducial marks look like, and the approximate coordinates of the fiducial marks that you can use to populate the MeasuresCamera.xml file.

Note

If you have a calibration report that corresponds to your specific images, you should use that instead.

The information provided here is for those cases where a calibration report does not exist, or has been lost to time.

Fairchild Cameras

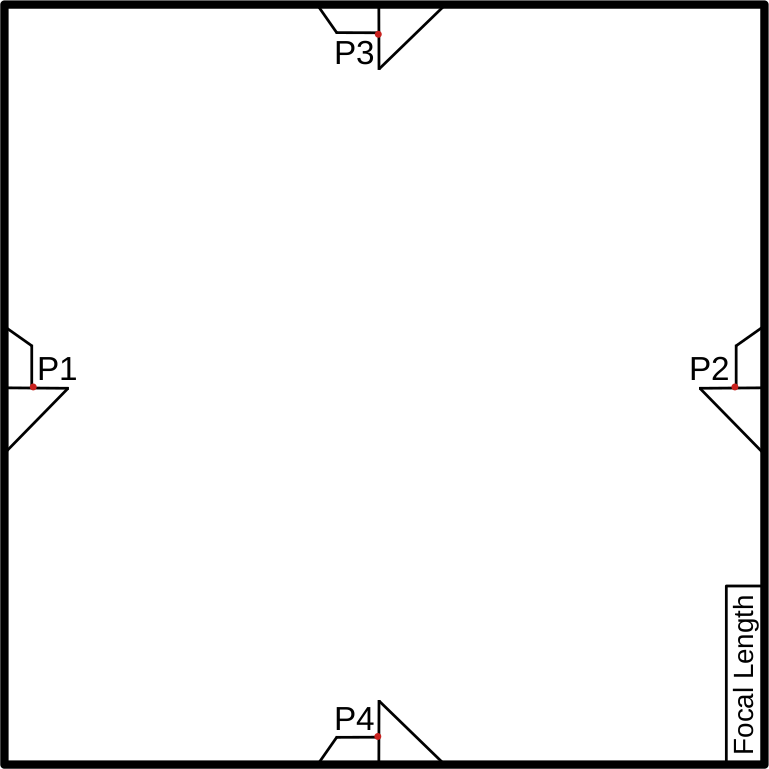

“wing-type” fiducials

These cameras tend to have 4 mid-side fiducial markers with varying patterns. Some examples of these patterns are shown here:

F224, K17B (Metrogon lens)

	x	y
P1	1	113
P2	225	113
P3	113	1
P4	113	225

Note

These are the approximate coordinates for the corners of the fiducial marker, as these tend to be more stable than the tips of the “wings”

notch-type fiducials

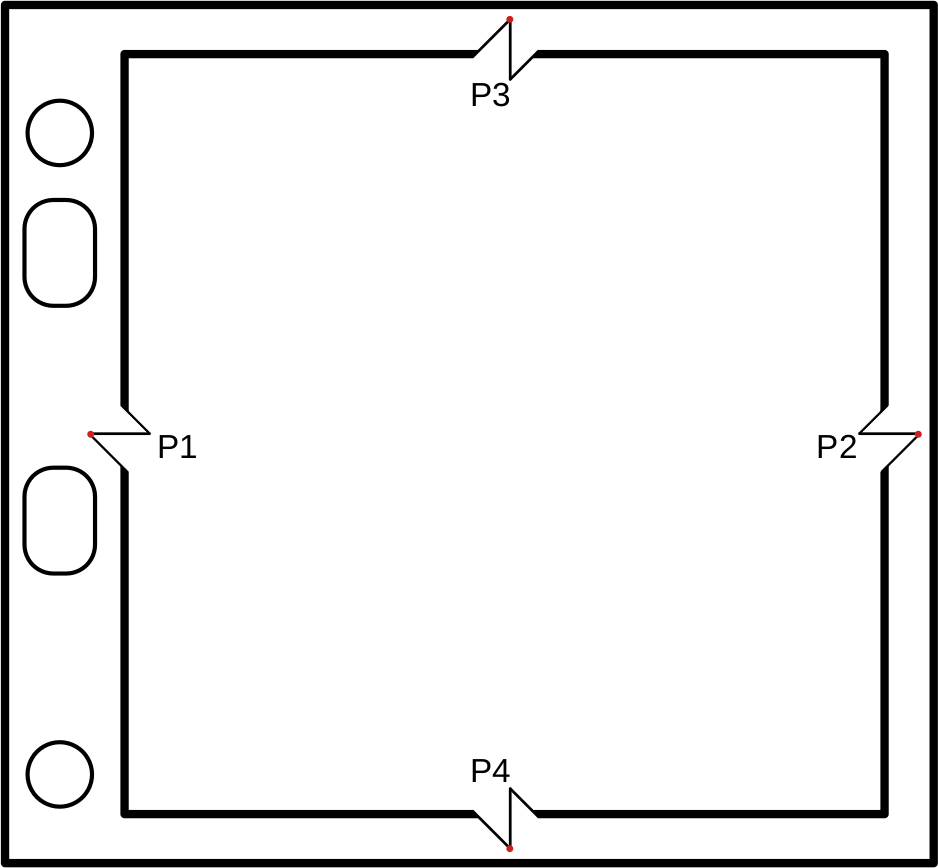

KC-1, KC-1B, T-11 (Metrogon Lens)

	x	y
P1	0	117.5
P2	238	117.5
P3	120	0
P4	120	235

check-type fiducials

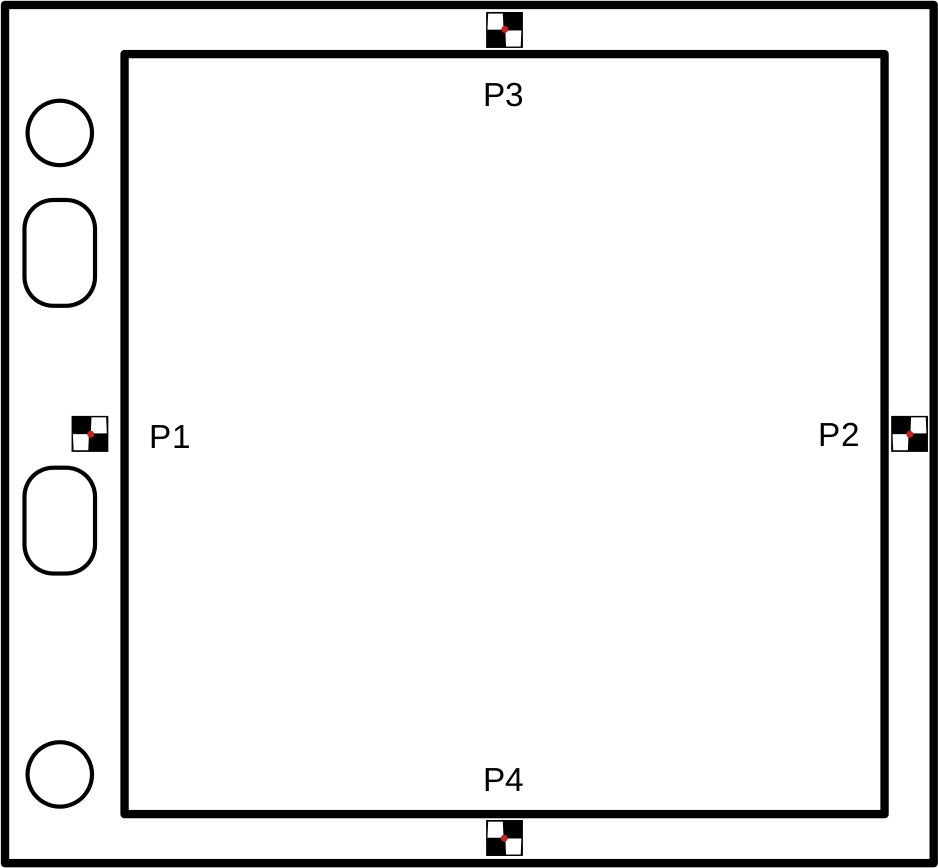

T-11

These cameras may have different fiducial patterns - for example, they may have a checked pattern like this:

	x	y
P1	0	117.5
P2	238	117.5
P3	120	0
P4	120	235

Wild Heerbrugg Cameras

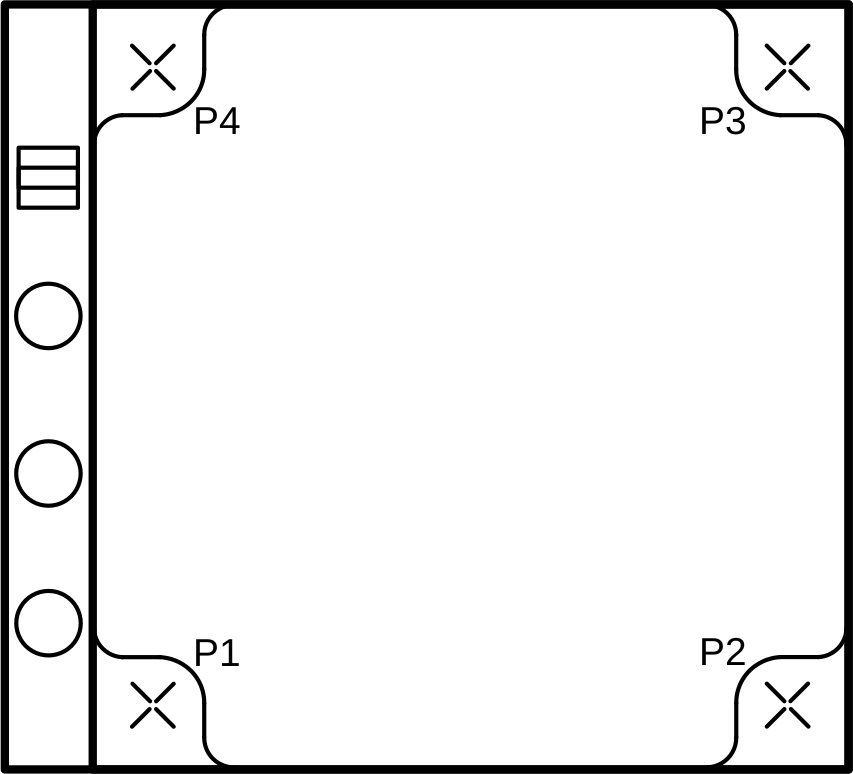

Wild RC5A, RC5, RC8 (Aviogon Lens)

These cameras tend to have four crosshair fidcuial marks in the corners, set inside of a rounded frame:

	x	y
P1	212	0
P2	212	212
P3	0	212
P4	0	0

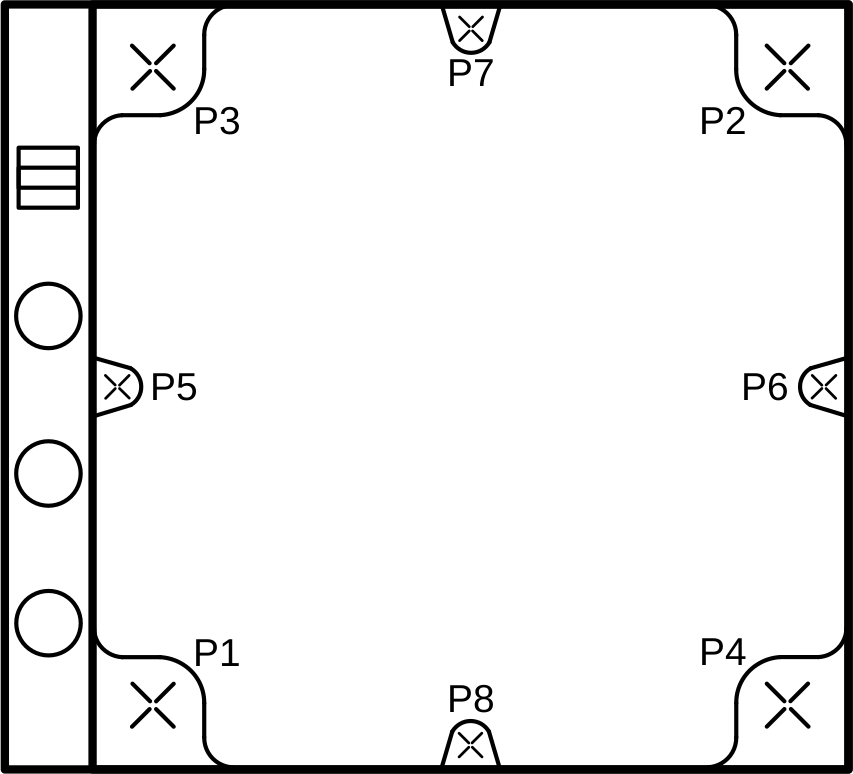

Wild RC8, RC10 (Aviogon Lens)

The RC8 and RC10 camera might also come in a pattern with 8 fiducial markers: 4 corner markers as on the RC5-type, and 4 mid-side markers:

	x	y
P1	4	216
P2	216	4
P3	4	4
P4	216	216
P5	0	110
P6	220	110
P7	110	0
P8	110	220

Zeiss Cameras

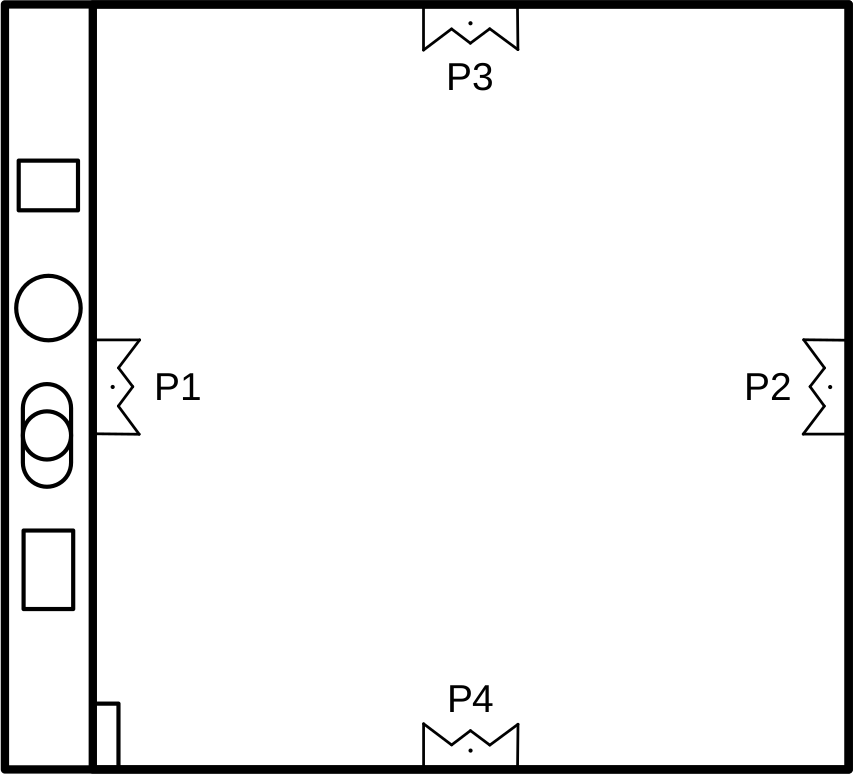

Zeiss RMK 15/23 (Pleogon Lens)

	x	y
P1	0	113
P2	226	113
P3	113	0
P4	113	226

Note

The coordinates above correspond to the center of the small dot near the tip of the fiducial marker.

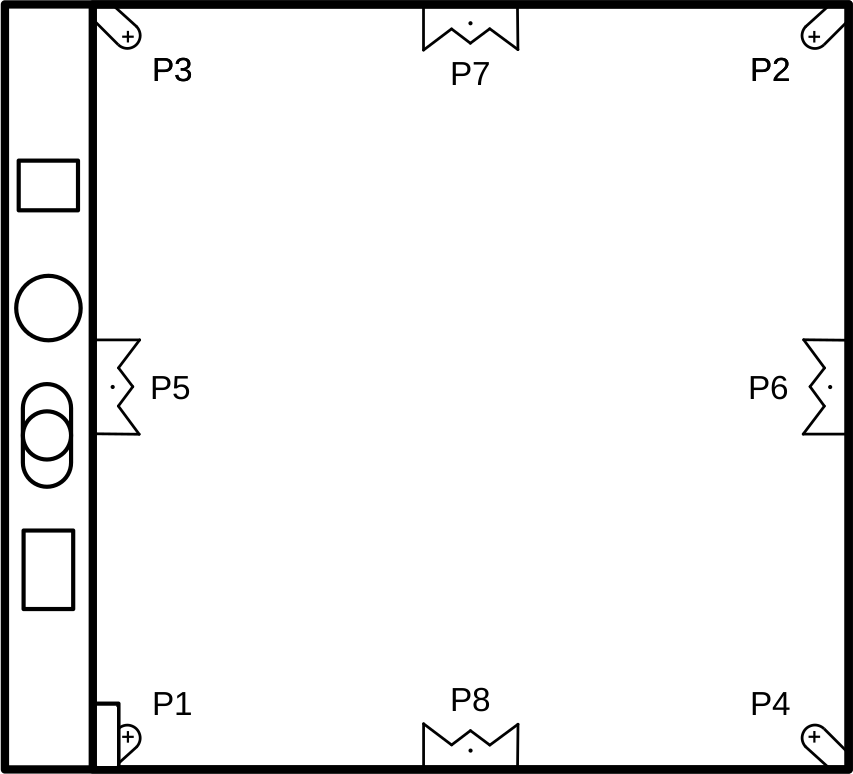

Zeiss RMK A 15/23 (Pleogon Lens)

Later versions of the Zeiss RMK camera used 8 fiducial markers: 4 mid-side markers, and 4 corner markers.

	x	y
P1	9	217
P2	217	9
P3	9	9
P4	217	217
P5	0	113
P6	226	113
P7	113	0
P8	113	226

Note

The coordinates for P5-P8 above correspond to the center of the small dot near the tip of the fiducial marker.
